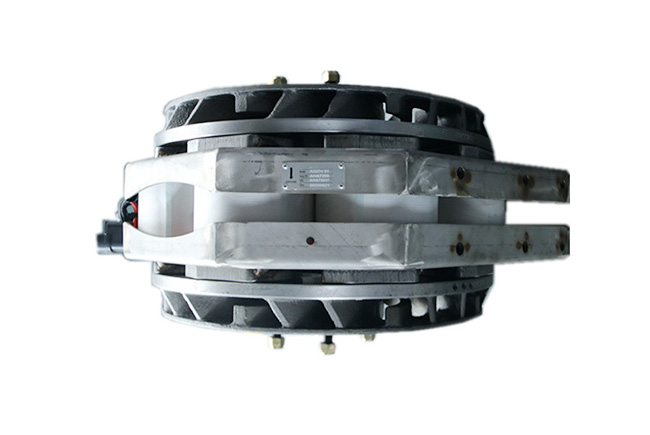

TELMA F Series Retarder

F series retarder is a kind of eddy current retarder of TELMA brand. FC50-50----FC71-65 suitable for installation in gearbox or rear axle. FN71-95----FN72-60 suitable for installation in gearbox. It is suitable for road vehicles and buses, but FN71-95----FN72-60 are generally not used on buses. F series retarder is widely used in city buses, school buses, coaches and tourist buses.

Chat Now

Introduction

1. The unique material technology rotor meets the durability test requirements;

2. The electronic control part of the high-performance of Telma retarder;

3. The whole process of computer numerical control processing technology;

4. The rotor is cast with alloy steel;

5. The coil adopts special heat shrinkable material;

Technical Parameters

The main technical parameters	Torque (Nm)	Weight（KG）	Dimensions（mm）	Stator Mass （KG）	Rotor Mass （KG）	Moment of inertia(kg/m2)	Electric current （A）	Applicable vehicle (m)		Installation method
			Length×width×axial					Applicable vehicle (m)
			Length×width×axial					Road vehicles	Bus
FC50-50	500	76	410x410x170	40	26	0.5	36	6～7m	7～8m	Gearbox or rear axle
FC50-60	600	83	410x410x180	47	26	0.5	48	6～7m	7～8m	Gearbox or rear axle
FC61-00	1000	106	463x463x182	55	35	0.55	90	8m	8～9m	Gearbox or rear axle
FC61-20	1200	107	463x463x182	57	35	0.55	92	9m	9～10m	Gearbox or rear axle
FC71-40	1400	129	516x516x180	73	48	1.64	104	9～10m	10～11m	Gearbox or rear axle
FC71-65	1650	134	516x516x180	81	48	1.64	121	10～11m	12m	Gearbox or rear axle
FN71-95	1900	173	516x516x242	96	67	2.33	125	10m	Generally not used	Gearbox
FN72-20	2200	173	516x516x242	107	67	2.33	140	11m	Generally not used	Gearbox
FN72-40	2400	181	516x516x242	114	67	2.33	145	12m	Generally not used	Gearbox
FN72-60	2600	183	516x516x242	117	67	2.33	149	12～13m	Generally not used	Gearbox
