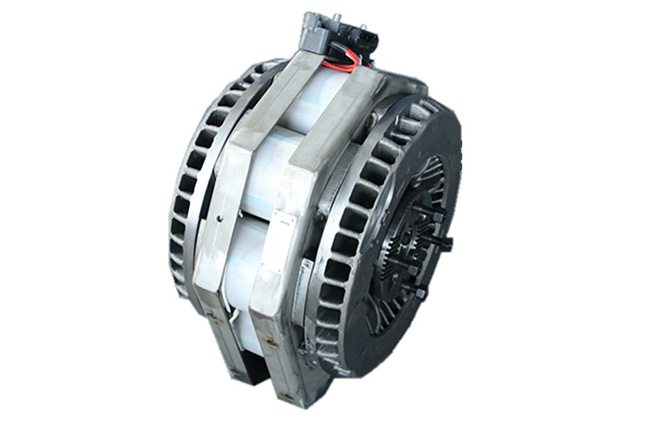

TELMA AX7 Series Retarder

AX7 Series retarder is a kind of eddy current retarder of TELMA brand. All suitable for installation in the middle of the drive shaft. The dimensions is 526×526×311mm. Widely used in front-engine vehicles. AX72-00 is suitable for 4×2 and 6×2 medium and heavy trucks. AX72-60 is suitable for 6×2 and 6×4 tractors and trucks.

Chat Now

Introduction

1. Lighter, smaller and better performance;
2. Uniquely designed rotor to enhance torque durability and reduce loss;
3. Optimized current design to reduce current loss;
4. More corrosion resistant;
5. Modular design, longer use time;
6. It is installed in the middle of the drive shaft and has wide applicability.

Technical Parameters

Technical parameters	Torque	Weight(Kg)	Dimensions(mm)	Stator mass	Rotor mass	Moment of inertia	Electric current (A)	Applicable vehicle weight（Total mass）		Applicable vehicle	Installation method
Product number	(Nm)	Weight(Kg)	Length×width×axial	(Kg)	(Kg)	(Kg/㎡)	Electric current (A)	Road vehicles	Off-road vehicle	Applicable vehicle	Installation method
AX72-00	2000	229	526×526×311	149	80	2	114	15-30t		4X2, 6X2 medium and heavy trucks	Drive shaft middle
AX72-60	2600	232	526×526×311	152	80	2	168	30-50t		6X2, 6X4 tractors, trucks	Drive shaft middle
