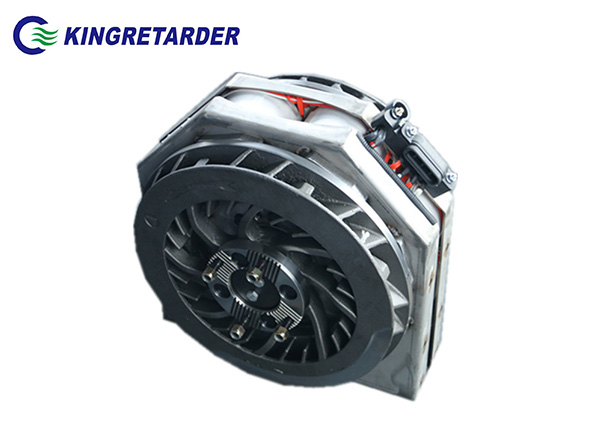

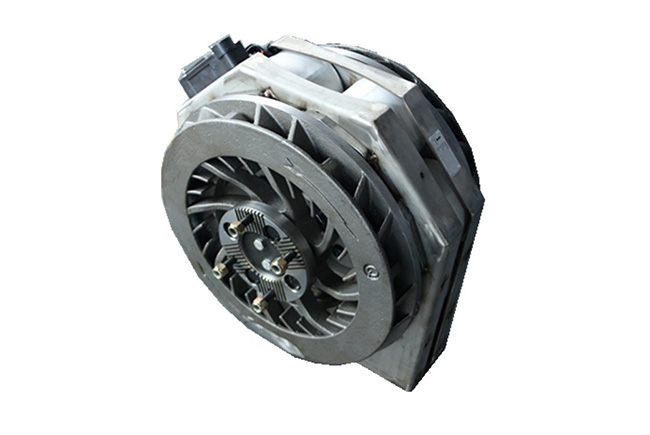

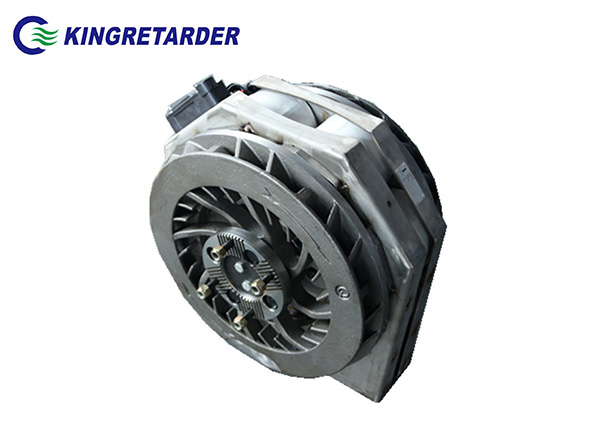

TELMA A Series Retarder

The A Series retarder is a kind of eddy current retarder of TELMA brand. All suitable for installation in the middle of the drive shaft. It is suitable for road vehicles and buses, and is widely used in front-engine vehicles.

Chat Now

Introduction

1. Lightweight, miniaturized dual-rotor design, light weight, low moment of inertia, small dynamic load, and no impact on the transmission system;

2. Stable torque output performance;

3. Diversified matching and wide application;

4. The structure size is small, and the dual-rotor retarder is used to solve the problem of the layout of the drive shaft of the small and medium-sized vehicle;

5. The rotor is made of alloy steel casting;

6.The coil adopts special heat shrinkable material.

Technical Parameters

The main technical parameters	Torque (Nm)	Weight（KG）	Dimensions（mm）	Stator Mass （KG）	Rotor Mass （KG）	Moment of inertia(kg/m2)	Electric current （A）	Applicable vehicle (m)		Installation method
			Length×width×axial					Applicable vehicle (m)
			Length×width×axial					Road vehicles	Bus
AX50-50	500	135.7	416x416x250	92.5	43.2	0.425	32	6～7m	6～8m	Drive shaft middle
AX50-70	700	145.3	416x416x250	102.1	43.2	0.425	35	8m	8～9m	Drive shaft middle
AE30-35	350	125	508x345x230	53	16	0.2	43.5	5～6m	5～6m	Drive shaft middle
AD50-55	550	122	363x400x253	83	39	0.64	36	6～7m	6～8m	Drive shaft middle
AD50-90	900	125	363x400x253	86	39	0.64	95	8m	8～10m	Drive shaft middle
AD72-00	2000	230	519x475x287	152	78	1.9	120	10～11m	10～12m	Drive shaft middle
AD72-60	2600	251	519x495x292	171	80	2	120	12～13m	Generally not used	Drive shaft middle
